• Grass protection: Helps protect grassed areas from wear caused by regular pedestrian activity.
• Recycled material: Made using recycled materials.
• Open cellular structure: Allows water to drain through the matting while grass grows through the openings.
• Interlocking tile design: Connects individual tiles to create a continuous surface across the required area.
• Textured, non-slip surface: Designed to provide grip for outdoor use.
• Impact absorption: Helps absorb shock and noise, making the tiles suitable for selected outdoor activity and play areas.
• Flexible installation: Tiles can be cut to fit around boundaries and equipment support posts.
• Suitable for grassed areas: Can be laid over existing grass, seeded topsoil or new turf on reasonably level ground.
• Fixing options: Four plastic fixing pegs are supplied per mat; additional installation accessories are available separately.
• Tested critical fall height: Up to 3m, depending on soil type, moisture content and turf condition.
• 10-year product guarantee: Provides long-term reassurance when the product is used in accordance with its applicable conditions.

Good to know

Greenskeeper Mesh underlay is recommended beneath the tiles to help stabilise the ground and reduce the risk of the mats sinking into the soil.

Top tip

For playground installations, assess the required critical fall height and prepare the ground properly before laying the tiles. The fall-height performance depends on the underlying ground and turf conditions.

These rubber grass protection tiles are supplied in convenient packs for covering outdoor areas of different sizes.

• Material: Recycled rubber
• Colour: Black as standard; other colours available to order
• Tile size: 500 × 500mm
• Thickness: 23mm
• Tiles per pack: 4
• Coverage per pack: 1m²

• Surface design: Textured, open cellular structure
• Installation: Interlocking, loose-laid system
• Fixings: Four plastic fixing pegs supplied per mat; additional anchor pegs and other joining accessories are available separately
• Underlay: Greenskeeper Mesh recommended to help stabilise the ground and reduce sinking
• Critical fall height: Up to 3m, depending on soil type, moisture content and turf condition
• Product guarantee: 10 years
• Environmental suitability: Outdoor use
• Customisation: Tiles can be cut to fit around boundaries and equipment posts

Good to know

Although each pack covers 1m², allow for the shape of the installation and any trimming required when calculating quantities.

Important for playgrounds: Critical fall height depends on the underlying ground and turf conditions. Assess the installation area carefully and ensure the completed surface is suitable for the intended play equipment and fall zones.

Accessories available separately: Metal installation plate, anchor pegs, barbed pegs, cable ties and male/female ramped edges.

Outdoor Activity Rubber Grass Mat Tiles are designed for grassed areas that need extra protection from regular use. Their open cellular design allows grass to grow through the surface, making them suitable for outdoor environments where maintaining a natural appearance is important.

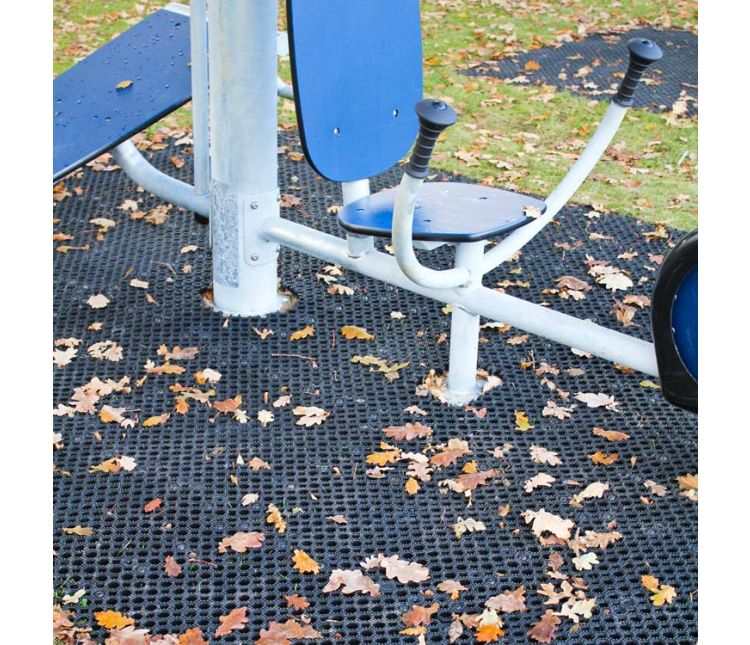

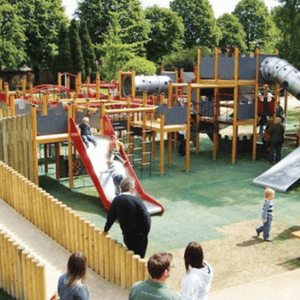

• Children’s playgrounds: Create a grass protection surface around suitable play equipment, subject to critical fall height requirements.
• Schools and nurseries: Help protect grassed areas used for outdoor activities and play.
• Parks and recreation grounds: Reinforce selected grassed areas that experience regular foot traffic.
• Fitness and fun trails: Provide a more durable surface along suitable outdoor activity routes.
• Pathways and gateways: Help reduce wear on grassed access routes.
• Play frames, swings and springers: Suitable for selected play areas where the surface has been assessed for the required critical fall height.
• Campsites and outdoor events: Help protect grass in designated pedestrian areas.
• Sports and leisure facilities: Reinforce suitable grassed areas used for access and outdoor activities.
• Golf courses and landscaped grounds: Help protect selected grassed routes from regular use.
• Equestrian areas: Consider for suitable grassed areas where the intended use and ground conditions are appropriate.

Good to know

These tiles are intended for reasonably level grassed ground. Potholes and undulations should be filled and compacted before installation. Greenskeeper Mesh is recommended to help stabilise the ground and reduce the risk of the tiles sinking.

Top tip

For playgrounds, measure the required safety area and assess the critical fall height before installation. Performance depends on soil type, moisture content and turf condition, so the tiles should be checked for suitability for the specific equipment and site.

From the Mats4U team

If you're planning a playground or outdoor activity area, take time to assess the ground conditions and the safety requirements before choosing your surfacing. We recommend Greenskeeper Mesh underlay to help stabilise the ground and reduce the risk of the mats sinking. For playground applications, check the required critical fall height for your equipment and ensure the complete installation is suitable for the site.

Correct installation helps the tiles remain secure, protects the grass beneath and supports the performance of the surfacing. Before starting, check the required critical fall height (CFH) for your application and make sure the ground is suitable.

Step 1: Prepare the Ground

Mark out the area and check that the ground is reasonably level. Fill any potholes or undulations with topsoil or sharp sand and compact the surface. Add grass seed where needed.

For improved stability, we recommend laying Greenskeeper Mesh across the entire installation area before positioning the tiles. This helps reduce the risk of the mats sinking into the soil.

Step 2: Position the Tiles

Lay the 1m × 1m mats over the prepared grass or underlay, aligning the interlocking edges. Each mat consists of four interlocking 500 × 500mm sections, providing 1m² of coverage.

Join the mats using a metal joining plate and mallet, or use cable ties to connect them. If using cable ties, trim off the excess and tuck the joins underneath the mats.

Step 3: Cut Tiles to Fit

Tiles can be trimmed to fit around boundaries and equipment. Use a sharp utility knife and take care when cutting.

When cutting around support poles, cut the outer edge at a 45° angle for a neater join. Cut holes around equipment support posts at a 90° angle.

Step 4: Secure the Perimeter

Roll back the tiles around the perimeter and mark the ground approximately 150mm beyond the outer edge. Cut and roll back the turf, then secure the perimeter of the installation using suitable fixing pegs.

Important: Do not use fixing pegs within critical fall zones. Check the layout and safety requirements for your installation before positioning any fixings.

Step 5: Replace the Turf

Once the perimeter has been secured, relay the cut wedge of turf into the recess around the tiles. Keep the turf well watered to encourage it to establish and grow.

As the grass grows through the open cellular structure, the tiles can become less noticeable within the grassed area. Once the grass is established, the surface can be mown.

Installation Temperature

For best results, install the tiles at temperatures above 10°C and below 30°C. Keep the tiles at a similar ambient temperature during installation, as they can expand or contract with temperature changes.

If temperatures exceed 30°C, store and install the tiles in the shade. Installing them in excessive heat without shade may increase the risk of splitting during colder weather. Cold water can be used to cool the tiles when necessary.

Good to know

Each mat comes with four plastic fixing pegs. Additional installation accessories, including metal joining plates, cable ties, anchor pegs and ramped edges, are available separately.

From the Mats4U team

If you're installing these tiles beneath playground equipment, check the required critical fall height before beginning. The stated fall height of up to 3m depends on the soil type, moisture content and turf condition, so the complete installation must be suitable for the specific site and equipment. Please see our full guide here.

Outdoor Activity Rubber Grass Mat Tiles are designed for outdoor use and require relatively little routine maintenance. A few simple checks can help keep the surface clear, secure and in good condition.

• Remove leaves and debris: Sweep or brush away leaves, twigs and loose dirt regularly to keep the surface tidy.
• Rinse when needed: Hose down the mats to remove accumulated dirt and debris.
• Keep drainage openings clear: Check that the open cellular structure is free from leaves, mud and other debris that could restrict water drainage.
• Inspect the installation: Check the interlocking connections, perimeter fixings and surrounding ground periodically, particularly in busy play areas.
• Check for damage: Look for damaged, displaced or loose sections and address any issues before continuing to use the area.
• Maintain the grass: Water the grass as needed while it establishes and mow it once it is sufficiently grown.

Replacing Damaged Sections

If a section becomes damaged, inspect the surrounding mats and connections before carrying out repairs. Individual sections may be replaceable without removing the entire installation, depending on how the mats have been joined and secured.

Good to know

The condition of the ground, grass and drainage can affect the performance of the installation. Regular checks are especially important in playgrounds and other areas where the surface is used frequently.

From the Mats4U team

Make routine surface checks part of your outdoor area maintenance. Keeping the drainage openings clear and checking that the mats remain securely connected can help you identify potential issues early.

What size are the Outdoor Activity Rubber Grass Mat Tiles?

Each mat measures 1m × 1m and consists of four interlocking 500 × 500mm sections. One mat covers 1m².

What is the critical fall height of these mats?

The mats have a critical fall height (CFH) of up to 3m. Actual performance depends on factors including soil type, moisture content and turf condition. Always check the required fall height for your playground equipment and ensure the complete installation is suitable for the site.

Can the mats be installed directly onto grass?

Yes. The mats can be laid over existing grass, seeded topsoil or new turf. The ground should be reasonably level, with potholes and uneven areas filled and compacted before installation. We recommend Greenskeeper Mesh underlay to help stabilise the ground and reduce the risk of the mats sinking.

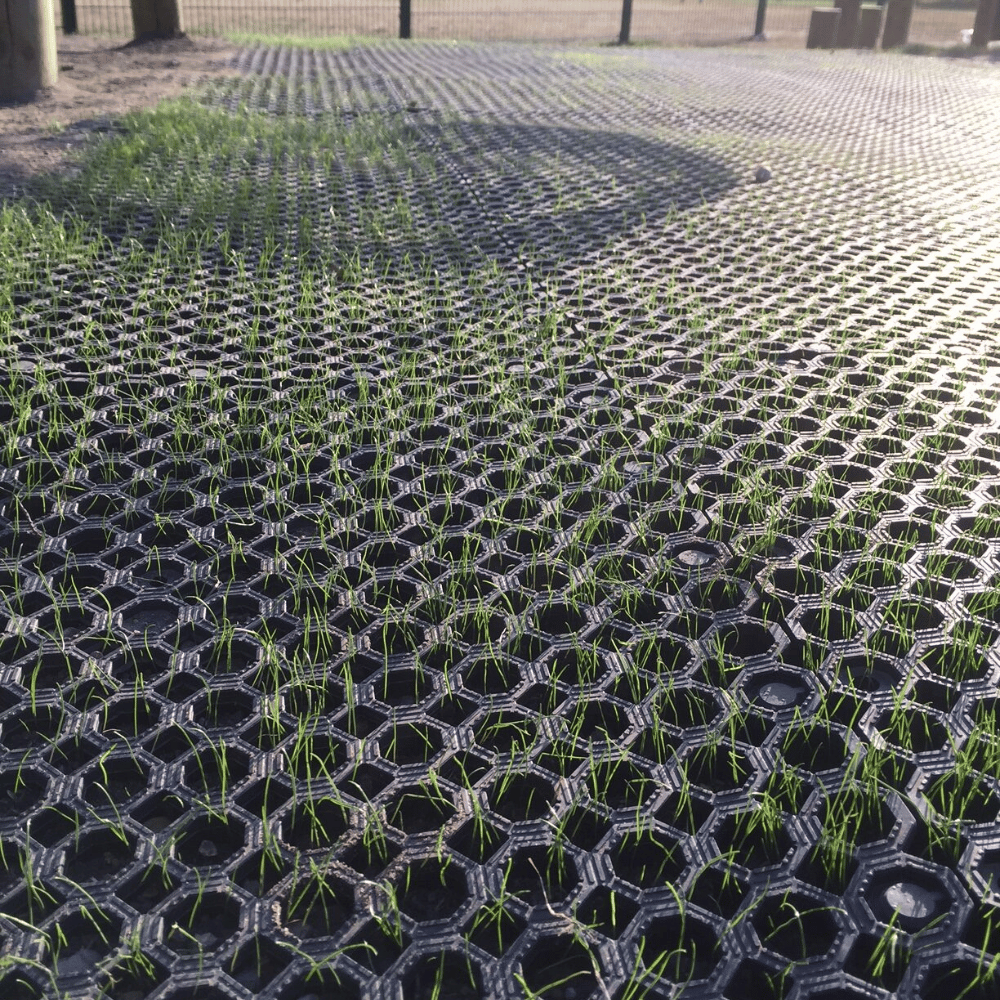

Will grass grow through the mats?

Yes. The open cellular structure allows grass to grow through the mats. Keep the grass well watered while it establishes. Once the grass is established, the area can be mown.

Are the mats suitable for playgrounds?

They can be used in playgrounds and outdoor activity areas, including beneath play frames and swings, provided the installation is appropriate for the equipment and site. Check the required critical fall height and ground conditions before installation. Fixing pegs must not be used within fall zones.

Are the mats supplied with fixing pegs?

Yes. Each 1m × 1m mat comes with four plastic fixing pegs. Additional installation accessories, such as joining plates, cable ties, anchor pegs and ramped edges, are available separately. Do not use pegs in critical fall zones.

Can the mats be cut to fit around playground equipment?

Yes. The mats can be trimmed to fit around boundaries and support posts. Use a sharp utility knife carefully, following the installation guidance for the required cut.

What colours are available?

Black is the standard colour. Other colours may be available to order, subject to availability and confirmation.

Are the mats suitable for wheelchair and pushchair access?

They may be suitable for wheelchair and pushchair access when correctly installed on appropriate, reasonably level ground. Accessibility will depend on the site, installation and surrounding surface conditions.

What guarantee comes with the mats?

The mats come with a 10-year product guarantee. Please check the applicable guarantee terms for details of coverage.

How do I clean the mats?

Brush or sweep away leaves and loose debris, hose down the surface when needed, and keep the drainage openings clear. Periodically inspect the connections, fixings and condition of the mats.

From the Mats4U team

If you're planning a playground installation, don't choose a surface based on fall height alone. Ground preparation, the condition of the grass and the complete installation all matter. Check the requirements for your equipment and site before ordering.
