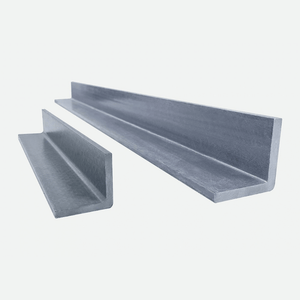

GRP Angle Profile is available in two profile sizes, with both 3m and 6m lengths available. The profile can also be cut to bespoke lengths through our in-house cutting service.

Available Sizes

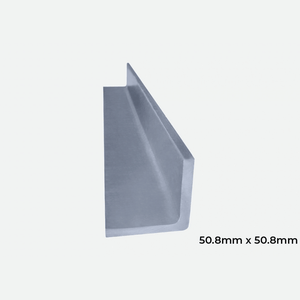

• 50.8mm × 50.8mm – available in 3m and 6m lengths

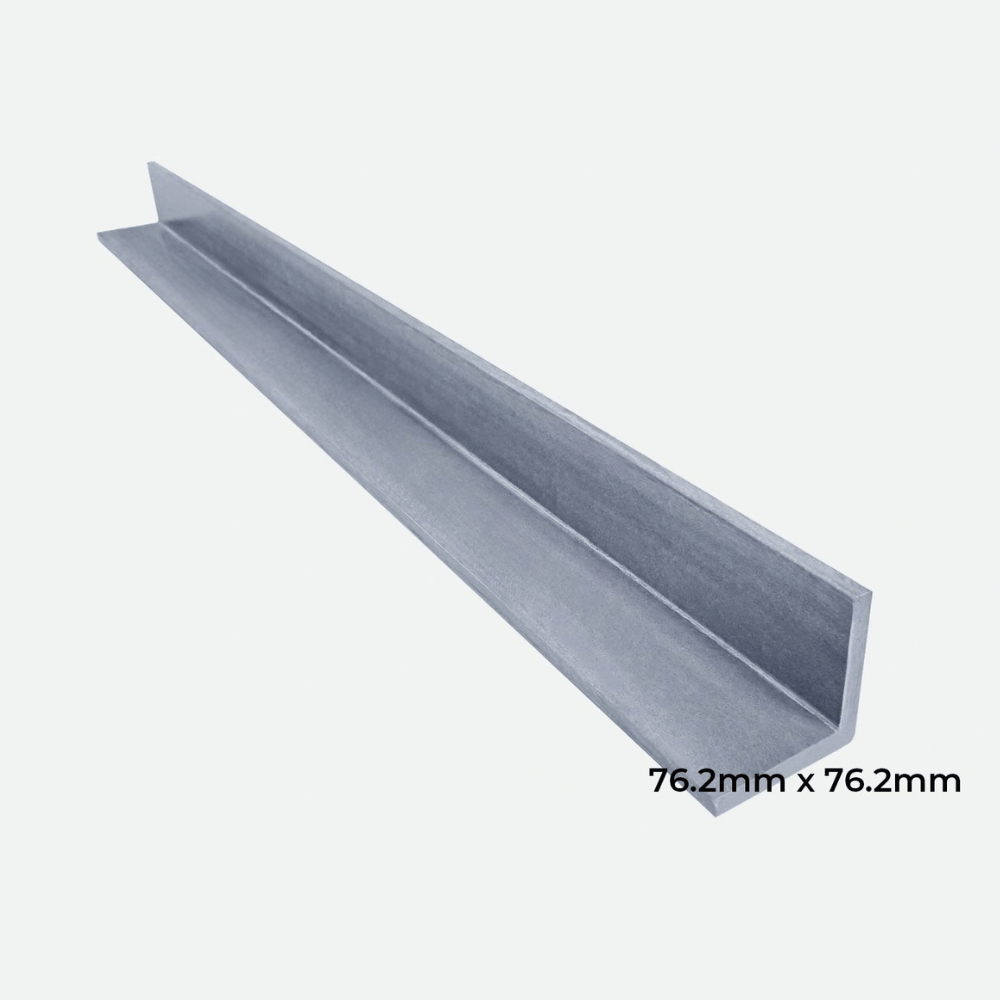

• 76.2mm × 76.2mm – available in 3m and 6m lengths

The standard finish is Grey (RAL 7000).

Product Specifications

• Material: GRP – Glass Reinforced Polyester

• Certification: EN 13706

• Cut to length: Yes

• Cut to size: Yes

• Indoor use: Yes

• Outdoor use: Yes

• Chemical resistant: Yes

• UV resistant: Yes

• Impact resistant: Yes

• Flame retardant: Yes

• Non-conductive: Yes, including high-voltage electrical applications

• Anti-microbial: Yes

• Temperature resistance: -50°C to +110°C

• Fixings: Clips, bolts and clamps available separately

• Sustainability: REACH compliant

• Technical Performance

GRP Angle Profile has been tested for a range of mechanical and material properties:

• Tensile strength: 220 MPa – ASTM D1037-93

• Modulus of elasticity: 21 GPa – ASTM D1037-93

• Flexural strength: 280 MPa – ASTM D1037-93

• Compressive strength: 145 MPa – ASTM D1037-93

• Flammability resistance: BS 476 Part 7

Good to Know

The two profile sizes provide options for different grating support and structural requirements. The appropriate size will depend on how the profile is being used, the design of the installation and the grating being supported.

From the Mats4U Team

If you're unsure whether the 50.8mm or 76.2mm profile is right for your project, send us your grating dimensions and details of how the angle profile will be used. We can help you identify the most appropriate option before you order.

GRP Angle Profile is designed to work alongside GRP grating systems, providing a practical way to secure grating panels or create frames and truss structures. It can form part of a wider installation where suitable support and fixing arrangements are required.

Made from glass reinforced polyester, the profile offers a lightweight alternative to conventional metal sections, with resistance to rust, corrosion and chemicals. This makes it suitable for use in demanding indoor and outdoor environments, including industrial, construction and water treatment applications.

Explore Related GRP Grating Products

Our GRP Angle Profile is designed to complement grating installations. Explore our related products below:

• GRP Open Mesh Grating – Open mesh flooring designed to allow water and debris to pass through.

• GRP Mini Mesh Grating – Durable, anti-slip grating with a smaller mesh design for flooring and access applications.

• GRP Grating Stair Treads – Anti-slip grating treads designed to improve traction on stairways.

From the Mats4U Team

When planning a grating installation, consider how the panels will be supported, joined and secured. The right profile and fixing arrangement will depend on the design of the structure, so it’s worth checking these requirements before ordering.

What is GRP Angle Profile used for?

GRP Angle Profile is designed to complement GRP grating installations. It can be used to help secure grating panels and to create frames or truss structures where a suitable profile is required.

What is GRP Angle Profile made from?

It is made from Glass Reinforced Polyester (GRP). This provides a lightweight and durable profile with resistance to rust, corrosion and chemical exposure.

What sizes is GRP Angle available in?

GRP Angle Profile is available in two sizes:

50.8mm × 50.8mm
76.2mm × 76.2mm

Both sizes are available in 3m and 6m lengths.

Can GRP Angle be cut to size?

Yes. Our in-house cutting service allows the profile to be cut to the required length or size, making it suitable for projects where standard lengths are not appropriate.

What colour is GRP Angle Profile?

The standard finish is Grey (RAL 7000).

Can GRP Angle be used outdoors?

Yes. The profile is suitable for both indoor and outdoor use. It is UV resistant and designed to withstand exposure to moisture, chemicals and corrosive environments.

Does GRP Angle rust?

No. GRP does not rust like conventional ferrous metal. It is also resistant to corrosion, making it suitable for environments where moisture or chemicals may be present.

Is GRP Angle electrically conductive?

No. The GRP profile is non-conductive, including for high-voltage electrical applications.

Are fixings available for GRP Angle?

Yes. Clips, bolts and clamps are available separately and can be used as part of suitable GRP grating installation systems.

Which GRP grating can I use with the Angle Profile?

The profile is designed to complement GRP grating installations. It can be used alongside products such as our GRP Open Mesh Grating, GRP Mini Mesh Grating and GRP Grating Stair Treads, depending on the requirements of the particular installation.

Which GRP Angle size should I choose?

The choice between the 50.8mm × 50.8mm and 76.2mm × 76.2mm profiles depends on the design of the installation and how the profile will be used. If you're unsure, provide us with your grating dimensions and project requirements and we can help you identify the appropriate option.

Is GRP Angle suitable for industrial environments?

Yes. Its resistance to corrosion, chemicals, moisture and UV exposure makes it suitable for demanding environments, including industrial and construction sites, water treatment facilities, shipping applications and offshore environments.
