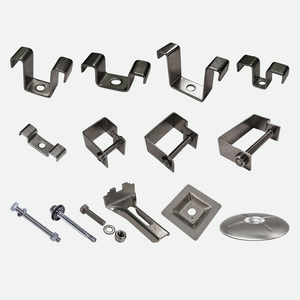

Our GRP Grating Clips and Clamps are available in a range of stainless steel fixing options to suit different grating types and thicknesses.

C Clips

• CC-25SS – Stainless Steel C Clip for 25mm Grating, supplied with fixing bolt

• CC-38SS – Stainless Steel C Clip for 38mm Grating, supplied with fixing bolt

• CC-50SS – Stainless Steel C Clip for 50mm Grating, supplied with fixing bolt

M Clips

• MC-19SS – Stainless Steel M Clip for Mini Mesh Grating

• MC-12SS – Stainless Steel M Clip for 12mm Grating

• MC-25SS – Stainless Steel M Clip for 25mm Grating

• MC-38SS – Stainless Steel M Clip for 38mm Grating
• MC-50SS – Stainless Steel M Clip for 50mm Grating

Other Clips & Clamps

• JC-38SS – Stainless Steel Universal J Clamp for Grating and Mini Mesh

• FC45SS – Stainless Steel Square Fixing Clip, 45mm
• FD45SS – Stainless Steel Fixing Disc, 45mm

Panel Fasteners

• PF-5550 – Panel Fastener Hex, 5.5 × 50mm, pack of 100
• PF-5570 – Panel Fastener Hex, 5.5 × 70mm, pack of 100

Stainless Steel Bolt, Nut & Washer Sets

• M8-35SS – Stainless Steel M8 × 35mm Bolt, Nut & Washer Set
• M8-80SS – Stainless Steel M8 × 80mm Bolt, Nut & Washer Set

General Specifications

• Material: Stainless steel

• Application: GRP grating fixing and joining

• Grating thicknesses: Options available for 12mm, 25mm, 38mm and 50mm grating

• Mini Mesh: Dedicated M Clip and compatible J Clamp options available

• Fixing options: Clips, clamps, discs, panel fasteners and bolt/nut/washer sets

Good to Know

Product codes identify the specific fixing option and should be checked against your grating thickness before ordering. Some fixing options are supplied with fixing bolts, while others are available as individual accessories.

From the Mats4U Team

If you're ordering fixings for a larger grating installation, it's worth working out the number of panel joints and fixing points before placing your order. If you send us your grating dimensions and layout, we can help you work through the fixing requirements.

GRP grating installations often involve multiple panels positioned alongside one another. Keeping those panels correctly aligned and securely fastened is an important part of creating a stable and practical flooring or access system.

GRP Grating Clips and Clamps provide dedicated fixing methods for connecting and securing grating panels. Depending on the grating type and thickness, different fixing designs can be used to join panels together or secure them as part of the wider supporting structure.

Choose the Fixing for Your Grating

Our range includes several fixing designs, each intended for specific grating configurations:

• C Clips – available for 25mm, 38mm and 50mm GRP grating

• M Clips – available for Mini Mesh, 12mm, 25mm, 38mm and 50mm grating

• Universal J Clamp – suitable for GRP Grating and Mini Mesh

• Square Fixing Clip – 45mm fixing option

• Fixing Disc – 45mm fixing option

• Panel Fasteners – available in 5.5 × 50mm and 5.5 × 70mm sizes

• M8 Bolt, Nut & Washer Sets – available in 35mm and 80mm lengths

This range allows the fixing method to be selected according to the particular grating and installation rather than relying on a single universal fixing.

Good to Know

Grating thickness is one of the first things to check when choosing a clip. For example, C Clips are available for 25mm, 38mm and 50mm grating, while M Clips cover a wider range including Mini Mesh and 12mm grating.

From the Mats4U Team

Before ordering, check the thickness shown on your grating product specification. If you're installing several panels, it's also worth planning where the panels meet so you can determine how many fixing points and which fixing types are required.

The correct fixing depends on the type and thickness of the GRP grating being installed. Our stainless steel range includes several fixing designs, giving you options for different grating configurations and installation requirements.

C Clips

C Clips are available for:

• 25mm GRP Grating

• 38mm GRP Grating

• 50mm GRP Grating

The C Clip options are supplied with the appropriate fixing bolt, providing a straightforward way to secure the relevant grating thickness.

M Clips

M Clips are available across a wider range of grating types and thicknesses:

• 12mm Grating

• 25mm Grating

• 38mm Grating

• 50mm Grating

• Mini Mesh Grating

This makes the M Clip range suitable for several of the GRP grating configurations available from Mats4U.

Universal J Clamp

The Universal J Clamp is designed for use with GRP Grating and Mini Mesh. It provides another fixing option where a J-shaped clamp is appropriate for the installation.

Square Fixing Clip

The 45mm Square Fixing Clip provides a dedicated fixing option for compatible GRP grating installations.

Fixing Disc

The 45mm Fixing Disc is another fixing option available for 25mm, 38mm and Mini Mesh Grating.

Panel Fasteners

For installations requiring panel fasteners, we supply:

• 5.5 × 50mm Panel Fasteners – supplied in packs of 100

• 5.5 × 70mm Panel Fasteners – supplied in packs of 100

• Bolt, Nut & Washer Sets

Stainless steel M8 bolt, nut and washer sets are available in:

• M8 × 35mm

• M8 × 80mm

These provide additional fixing options where a bolt-through connection is appropriate.

Good to Know

Not every fixing is designed for every type of grating. Always match the clip or clamp to the specific grating type and thickness before ordering.

From the Mats4U Team

If you're unsure which fixing is appropriate, send us the product name, grating thickness and details of how you're planning to install it. This makes it much easier to identify the relevant fixing from the range.

GRP Grating Clips and Clamps are manufactured from stainless steel, providing a durable fixing material for GRP grating installations.

Stainless steel is well suited to environments where fixing components may be exposed to moisture, outdoor conditions or other demanding surroundings. It also provides a practical alternative to using standard untreated steel fixings, particularly where corrosion resistance is an important consideration.

The fixing accessories can be used alongside GRP grating in a range of indoor and outdoor environments, including installations where the grating itself needs to withstand wet, oily or industrial conditions.

Benefits of Stainless Steel Fixings

• Stainless steel construction for durable fixing

• Suitable for indoor and outdoor installations

• Designed to complement GRP grating systems

• Suitable for use where moisture may be present

• Available across a range of clip, clamp and fastening designs

• Helps provide a consistent fixing material across the installation

The fixing method remains an important consideration. The correct clip, clamp, bolt or fastener should be selected according to the grating type, thickness, supporting structure and the way the panels are being installed.

Good to Know

Corrosion resistance applies to the stainless steel fixing components, but the suitability of a complete installation will also depend on the surrounding environment and any other materials used.

From the Mats4U Team

For outdoor or particularly demanding installations, consider the complete fixing arrangement rather than looking at the clip in isolation. The grating, supporting structure and fixing components should work together as one system.

What are GRP Grating Clips and Clamps used for?

GRP Grating Clips and Clamps are used to help fasten and join GRP grating panels. Different clip and clamp designs are available to suit different grating types and thicknesses.

What are the clips and clamps made from?

Our GRP Grating Clips and Clamps are made from stainless steel, providing durable fixing components for GRP grating installations.

Which clips fit 25mm GRP Grating?

For 25mm GRP Grating, available options include C Clips and M Clips. The specific fixing should be selected according to the installation requirements.

Which clips fit 38mm GRP Grating?

For 38mm GRP Grating, we supply C Clips and M Clips. A Universal J Clamp is also available for GRP Grating and Mini Mesh.

Which clips fit 50mm GRP Grating?

For 50mm GRP Grating, both C Clips and M Clips are available.

Which fixing should I use for Mini Mesh Grating?

For Mini Mesh Grating, we supply an M Clip specifically for Mini Mesh, as well as a Universal J Clamp for Grating and Mini Mesh. A 45mm Fixing Disc is also available for compatible Mini Mesh installations.

Do you supply fixings for 12mm Grating?

Yes. The MC-12SS Stainless Steel M Clip is designed for 12mm Grating.

Are fixing bolts included with the clips?

Some clips are supplied with a fixing bolt. For example, the C Clip options for 25mm, 38mm and 50mm Grating are supplied with fixing bolts. Other fixing components and bolt sets are available separately.

Do you supply bolts, nuts and washers?

Yes. Stainless steel M8 bolt, nut and washer sets are available in 35mm and 80mm lengths.

Do you supply panel fasteners?

Yes. We supply 5.5 × 50mm and 5.5 × 70mm hex panel fasteners, both supplied in packs of 100.

Can these fixings be used outdoors?

The stainless steel fixing range is suitable for use with GRP grating in indoor and outdoor installations. The suitability of the complete fixing arrangement should always be considered in relation to the environment and installation requirements.

How do I know how many clips or clamps I need?

The number required depends on factors such as the number of grating panels, panel joints, support arrangement and installation layout. There is not a single quantity that applies to every project.

Can I use any clip with any GRP grating?

No. Different clips are designed for specific grating types and thicknesses. For example, C Clips are available for 25mm, 38mm and 50mm grating, while M Clips are available for Mini Mesh, 12mm, 25mm, 38mm and 50mm grating.

Good to Know

Always check the grating thickness and type before selecting your fixing. Choosing the correct accessory helps ensure that the fixing method is appropriate for the particular grating panel.

From the Mats4U Team

If you already know which GRP grating you're using but aren't sure which clips or clamps you need, send us the product details and we'll help you identify the relevant options.
