About This Mat
Description

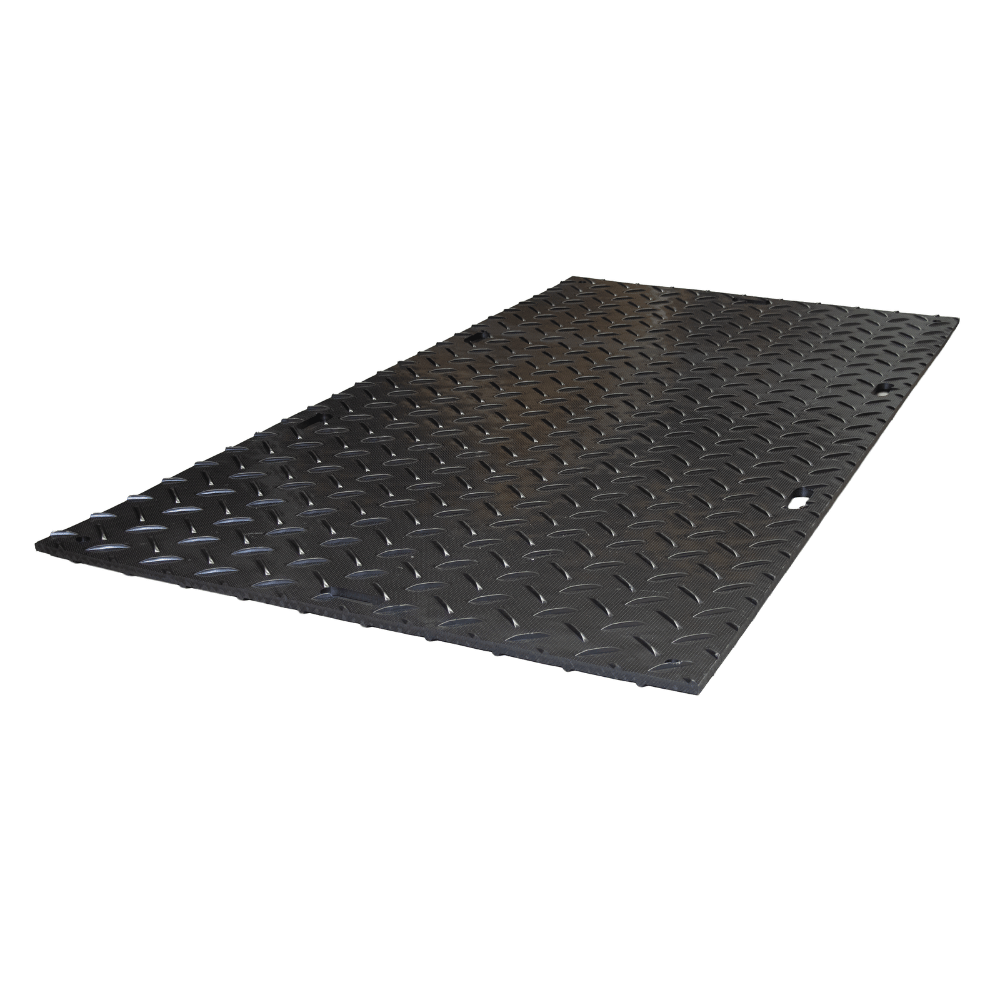

The UltraTrack HD Heavy-Duty Ground Mat is engineered for demanding environments where dependable ground protection is essential. Manufactured from recycled high-density polyethylene (HDPE), this 15mm structural mat is built to withstand extreme pressure while protecting underlying surfaces from damage.
With a load capacity of approximately 50–120 tonnes (depending on ground conditions), UltraTrack HD is ideal for heavy plant access, crane operations, and large-scale infrastructure projects.

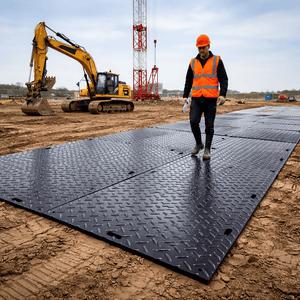

Its dual heavy traction surfaces provide excellent grip in all weather conditions, helping improve site safety and reduce slippage risk for vehicles and machinery. The modular design allows multiple mats to be securely connected using PU or steel connectors, enabling the rapid creation of temporary roadways, working platforms, and crane pads.
Reusable, durable, and built for efficiency, UltraTrack HD is a trusted solution for civil engineering, utilities, construction, and large infrastructure developments where ground stability cannot be compromised.
View instalation guide HERE
Features and Specifications
Features
- Made from recycled High-Density Polyethylene (HDPE)
- Supports heavy loads approx. 50–120 tonnes (ground dependent)
- 15mm thick structural design for maximum strength
- Dual traction surfaces for enhanced grip and safety
- Suitable for all-weather use (-20°C to +40°C)
- Compatible with PU and steel connector systems
- Reusable across multiple projects
- Fast, modular installation and removal
- Designed for extreme ground protection and load distribution
Specifications
- Material: High-Density Polyethylene (HDPE)
- Thickness: 15mm

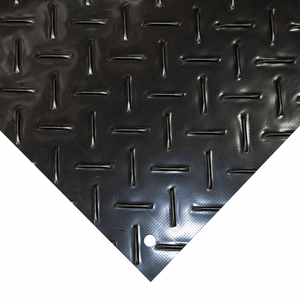

- Surface Finish: Dual traction / checker plate style surface
- Load Capacity: Approx. 50–120 tonnes (site dependent)
- Temperature Range: -20°C to +40°C
- Environmental Resistance: Weatherproof, UV and moisture resistant
- Connection System: PU connectors / steel connectors compatible
- Installation Type: Loose lay modular system
- Reusability: Yes (multi-use lifecycle)
Installation Instructions
- Position mats in the required layout on prepared ground.
- Insert one end of the steel connector into the slot on the first mat.
- Align the second mat at the required angle or side-by-side position.
- Insert the opposite end of the connector into the adjacent mat.
- Continue the process until the full access route or work area is covered.
- For PU connectors, tighten using a socket or Allen key to secure.
- To remove, reverse the installation steps carefully and lift mats sequentially.
Download Instruction Guide
Cleaning & Maintenance
- Wash down with water after use to remove mud and debris
- Use pressure washing for heavy contamination if required
- Avoid strong solvents or chemicals that may damage the surface
- Inspect connectors regularly before reuse
- Store flat or evenly stacked on a level surface
- Ensure mats are fully dry before long-term storage
Ideal Applications
- Heavy construction site access routes
- Civil engineering and infrastructure projects
- Crane pads and lifting operations
- Utilities and pipeline installation works
- Temporary haul roads for heavy machinery
- Ground protection on soft or sensitive terrain
- Energy sector and wind farm developments
- Large-scale industrial construction sites
Description
The UltraTrack HD Heavy-Duty Ground Mat is engineered for demanding environments where dependable ground protection is essential. Manufactured from recycled high-density polyethylene (HDPE), this 15mm structural mat is built to withstand extreme pressure while protecting underlying surfaces from damage.
With a load capacity of approximately 50–120 tonnes (depending on ground conditions), UltraTrack HD is ideal for heavy plant access, crane operations, and large-scale infrastructure projects.
Its dual heavy traction surfaces provide excellent grip in all weather conditions, helping improve site safety and reduce slippage risk for vehicles and machinery. The modular design allows multiple mats to be securely connected using PU or steel connectors, enabling the rapid creation of temporary roadways, working platforms, and crane pads.
Reusable, durable, and built for efficiency, UltraTrack HD is a trusted solution for civil engineering, utilities, construction, and large infrastructure developments where ground stability cannot be compromised.
View instalation guide HERE
Features and Specifications
Features
- Made from recycled High-Density Polyethylene (HDPE)
- Supports heavy loads approx. 50–120 tonnes (ground dependent)
- 15mm thick structural design for maximum strength
- Dual traction surfaces for enhanced grip and safety
- Suitable for all-weather use (-20°C to +40°C)
- Compatible with PU and steel connector systems
- Reusable across multiple projects
- Fast, modular installation and removal
- Designed for extreme ground protection and load distribution
Specifications
- Material: High-Density Polyethylene (HDPE)
- Thickness: 15mm
- Surface Finish: Dual traction / checker plate style surface
- Load Capacity: Approx. 50–120 tonnes (site dependent)
- Temperature Range: -20°C to +40°C
- Environmental Resistance: Weatherproof, UV and moisture resistant
- Connection System: PU connectors / steel connectors compatible
- Installation Type: Loose lay modular system
- Reusability: Yes (multi-use lifecycle)
Installation Instructions
- Position mats in the required layout on prepared ground.
- Insert one end of the steel connector into the slot on the first mat.
- Align the second mat at the required angle or side-by-side position.
- Insert the opposite end of the connector into the adjacent mat.
- Continue the process until the full access route or work area is covered.
- For PU connectors, tighten using a socket or Allen key to secure.
- To remove, reverse the installation steps carefully and lift mats sequentially.
Download Instruction Guide
Cleaning & Maintenance
- Wash down with water after use to remove mud and debris
- Use pressure washing for heavy contamination if required
- Avoid strong solvents or chemicals that may damage the surface
- Inspect connectors regularly before reuse
- Store flat or evenly stacked on a level surface
- Ensure mats are fully dry before long-term storage
Ideal Applications
- Heavy construction site access routes
- Civil engineering and infrastructure projects
- Crane pads and lifting operations
- Utilities and pipeline installation works
- Temporary haul roads for heavy machinery
- Ground protection on soft or sensitive terrain
- Energy sector and wind farm developments
- Large-scale industrial construction sites
